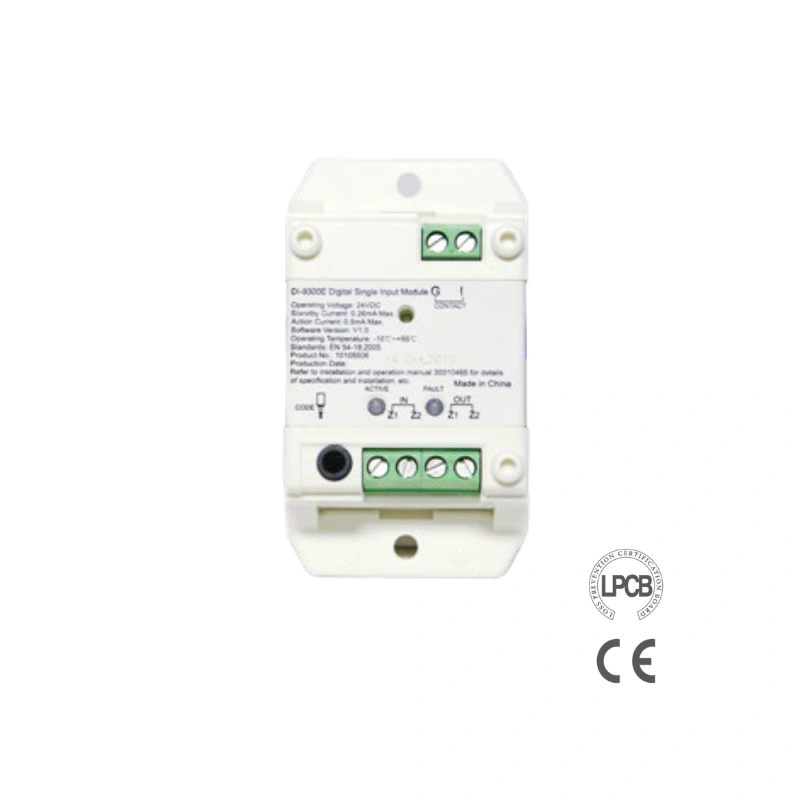

DI-9300E Digital Single Input Module
The GST DI-9300E Digital Single Input Module is an intelligent, loop-powered addressable monitor device designed to interface dry contact field systems with a main fire alarm control panel. It supervises external wiring and relays activation signals from non-addressable equipment like water flow switches, linear heat detection cables, pressure switches, or flameproof manual call points
Description
| Operating Voltage | Loop 24V DC (Operational range: 16V DC to 28V DC) |
| Standby Current | ≤ 0.26 mA |
| Action Current | ≤ 0.5 mA |
| Addressing Method | Electronic addressing via P-9910B device (Occupies 1 address) |
| Address Range | 1 to 242 |
| End-of-Line Resistance | 4.7KΩ |
| Wiring Connection | Loop: Non-polarized 2-core (Z1, Z2) / Input: Non-polarized 2-core (I, G) |
| Ingress Protection | IP30 rating |
| Operating Environment | -10°C to +55°C; Relative Humidity ≤ 95% (non-condensing) |
| Dimensions & Enclosure | 78.0 mm × 45.3 mm × 28.5 mm; White ABS Plastic (RAL9016) |
| Weight | Approximately 36.8 g |
| Compliance Standard | LPCB Marked; EN 54-18:2005 approved |
