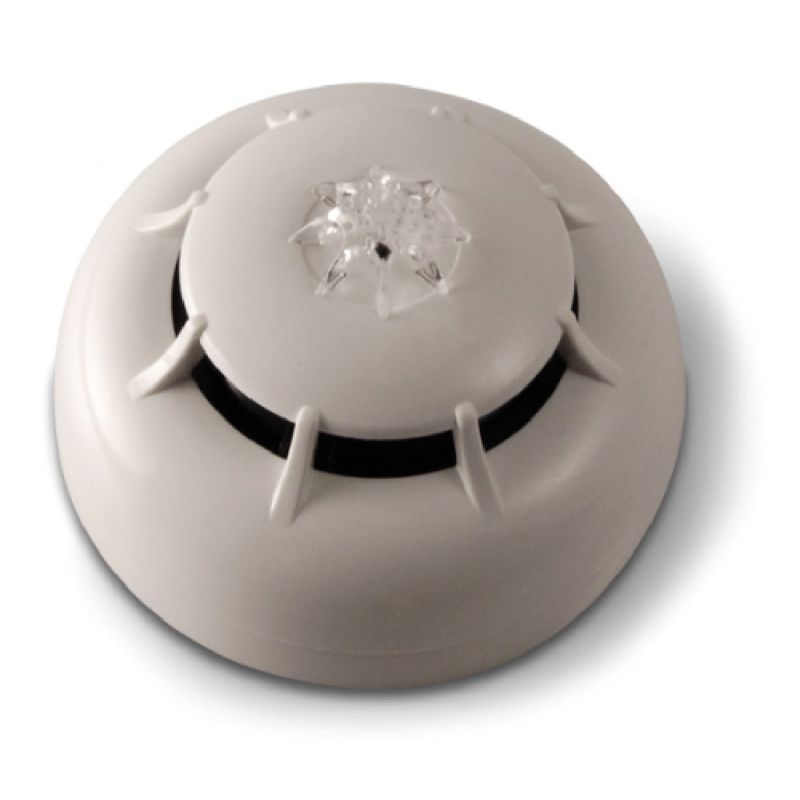

ED200 Addressable Heat Detector

The Enea ED200 series detector is designed to ensure accurate temperature detection, even in conditions where smoke can cause false alarms. It can be configured in various operating modes (A1R, B, A2S, BR) with fixed thresholds between 58°C and 72°C and thermal velocity measurement capabilities. This versatility makes it particularly well-suited for industrial environments, professional kitchens, or mechanical rooms, where optical detection may be ineffective. The ED200 is a reliable solution for thermal monitoring of sensitive areas.

Description

Power supply voltage -10–30 Vdc
Current draw during standby -90 μA
Current draw during alarm -Max 40 mA
Adjustable sensitivity-0.08 – 0.10 – 0.12 – 0.15 dBm
Operating temperature–5° … +40°C
Height (including base)54 mm
Diameter-110 mm
Weight (with base)-160g
Weight (without base)-90g
Colour-White
