Showing 1–12 of 132 results
Simplex fire alarm networks communicate information among distributed Simplex fire alarm panels. Systems may be composed of similar capability panels sharing information, or specific nodes may be added to perform dedicated network functions.
For non-Simplex panels, a Network System Integrator can be used to connect equipment to the network using optically isolated inputs and relay contact outputs.
/* Darker background on mouse-over */
.btn:hover {
background-color: RoyalBlue;
}
The MxPro 5 series control panels are fully expandable from 1 – 2 loops and supplied with 2 on-board sounder circuits, 20 programmable zonal LEDs with slide-in labels, and 25 system LEDs for information purposes. There are also 4 programmable function buttons with LED indication for confirmation of operation.
The control panel consists of the latest dual flash-based microprocessor technology combined with a high resolution, high contrast, graphical LCD display and tactile keypad providing a simple select and click programming aid for engineer configuration and end user operation. Powerful cause-and-effect programming and enhanced trace diagnostics makes the panel suitable for a wide range of site applications from small to large complex multi-area systems. Fully programmable onsite via the on-board alphanumeric keypad, or PC-NeT configuration software.
PC Software: An extensive suite of user-friendly Windows based PC software programs has been developed to enhance your experience when using MxPro 5 Series of Fire panels. The suite incorporates a number of different programmes to include a configuration, service, logo and virtual panel tool to allow the flexibility of the equipment to be fully explored.
Network: Simply adding a network card allows the panel to communicate with any other MxPro 5/MxPro 4 fire panel, remote terminal, or network peripheral, such as, ‘ipGateway™’ or BMS/Graphical Interface. The network operates as a true peer-topeer system and can be configured in a fault-tolerant loop or radial format.
The new Go series is an evolution for non-networked single-loop fire alarm systems. Its innovative design includes several improvements and upgrades to critical safety features, while retaining all the benefits and user-friendly operation of an Advanced fire alarm control panel.
The control panel now features an ergonomic layout and a high-resolution, high-contrast graphical LCD display. The tactile keypad enables simple select-and-click programming, making configuration faster for engineers and operation easier for end-users.
Offering two performance options, Go and Go+, the series provides different maximum numbers of configurable addresses, ensuring greater flexibility for site-specific installations.
Functional improvements include integral zonal LEDs which enable instant identification of alarm locations, and ensure compliance with BS5839 without the cost of a separate LED zone card.
The new PCB integrates both control panel and peripherals on the same board and incorporates the latest high-speed microprocessor technology, for 9 times faster operation than MxPro 4.
With powerful cause-and-effect programming and enhanced trace diagnostics, the panel is ideal for a variety of applications, from small to medium systems.
Every Go series panel is fully programmable on-site through the control panel display or our updated, user-friendly PC Configuration Tool.
The MxPro 5 series control panels are supplied with a single loop driver card, 2 on board sounder circuits, 20 programmable zonal LEDs with slide-in labels, and 25 system LEDs for information purposes. There are also 4 programmable function buttons with LED indication for confirmation of operation. The control panel consists of the latest dual flash-based microprocessor technology combined with a high resolution, high contrast, graphical LCD display and tactile keypad providing a simple ‘select & click’ programming aid for engineer configuration and end user operation.
Powerful cause-and-effect programming coupled with dynamic zoning, and enhanced trace diagnostics makes the panel suitable for a wide range of site applications from small to large complex multi-area systems. The panel is fully programmable on-site via the on-board alphanumeric keypad, or PC-NeT Configuration Software. An extensive suite of user-friendly Windows based PC software programs has been developed to enhance your experience when using MxPro 5 series fire panels.
The suite incorporates a number of different programmes which include configuration, service, logo and virtual panel tools to allow the flexibility of the equipment to be fully explored. Simply adding a network card allows the panel to communicate with any other MxPro 5 fire panel, remote terminal, or network periferal, such as ipGateway™, BMS or graphical interface. The network operates as a true peer-to-peer system and can be configured in a fault tolerant loop or radial format.
This unit is designed to ensure that alarm signal can be actually transmitted to all location. Especially for a closed room, any fire inside can be indicate outside.
NOTIFIER’s AMPS-24/E is an addressable power supply and battery charger with up to three 24 VDC outputs. It operates in either FlashScan® or CLIP (Classic Loop Interface Protocol) mode with the NFS-3030/NFS2-3030 Fire Alarm Control Panel (FACP). It can also be used as the primary power supply for the NCA-2 Network Control Annunciator.

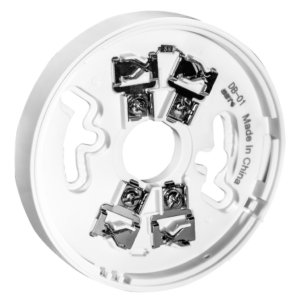

All detectors in the XP95 and Discovery ranges fit onto the low insertion force Intelligent Mounting Base with stainless steel contacts for the detector terminals. XPERT7 cards are supplied with all bases.
The XP95 Heat Detector (A2S) monitors temperature by using a single thermistor which provides a count output proportional to the external air temperature, reporting an alarm at 55°C.
The Apollo SA5500-350APO is an intelligent, addressable open-area acoustic and optical warning device designed for indoor fire alarm systems. It combines a high-output multi-tone sounder with a visual indicator device (VID) inside a single, compact housing to provide clear, synchronized emergency alerts.
