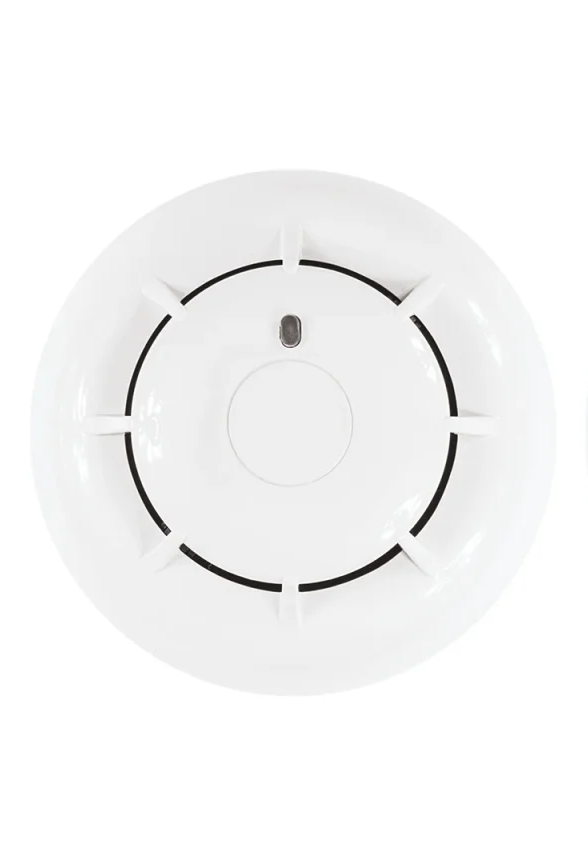

ED100 Optical Smoke Detector
The ED100 smoke detector from the Enea series uses the Tyndall effect (light scattering) to providehighly accurate detection of particles generated by a fire. Its ability to respond promptly makes it ideal for environments where early detection is crucial. The optimized design of the detection chamber, the superior seal, and the 500-micron insect screen ensure excellent protection against false alarms. Furthermore, the detector’s sensitivity can be easily adjusted to different operating conditions, thanks to four selectable levels (0.08, 0.10, 0.12, 0.15 dB/m).
Description
Power supply voltage -10–30 Vdc
Current draw during standby -90 μA
Current draw during alarm -Max 40 mA
Adjustable sensitivity-0.08 – 0.10 – 0.12 – 0.15 dBm
Operating temperature–5° … +40°C
Height (including base)54 mm
Diameter-110 mm
Weight (with base)-160g
Weight (without base)-90g
Colour-White
