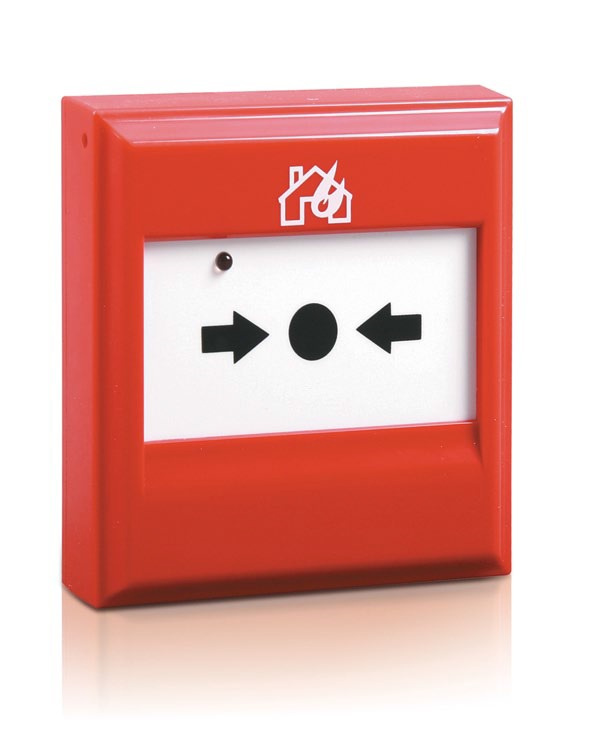

DI-9204E Digital Manual Call Point
The GST DI-9204E Digital Manual Call Point (MCP) is an intelligent, addressable fire alarm component operating on a digital loop protocol. It is designed for indoor public areas and interfaces directly with compatible fire alarm control panels—such as the GST200N and GST-IFP4E—to report manual alarms. When a fire occurs, manual compression of the reusable frangible element triggers an immediate alarm signal to the control panel, displaying the exact device address
Description
| Parameter | Specification |
| Operating Voltage | 24 VDC Loop Voltage |
| Standby Current | ≤ 0.6 mA |
| Alarm Current | ≤ 1.8 mA |
| Addressing Range | Electronically addressed (1 to 242) |
| Initiating Type | Reusable / resettable action plate (key reset) |
| Ingress Protection (IP) | IP43 (Indoor use only) |
| Operating Temperature | -10°C to +55°C |
| Relative Humidity | ≤ 95% (Non-condensing) |
| Dimensions (With Box) | 87.1 mm × 87.1 mm × 58 mm |
| Dimensions (Flush) | 87.1 mm × 87.1 mm × 23 mm |
| Weight | 160 g (with back box) / 107 g (without box) |
| Enclosure Material | ABS (Red) |
| Standards Compliance | EN 54-11 / LPCB Approved |
