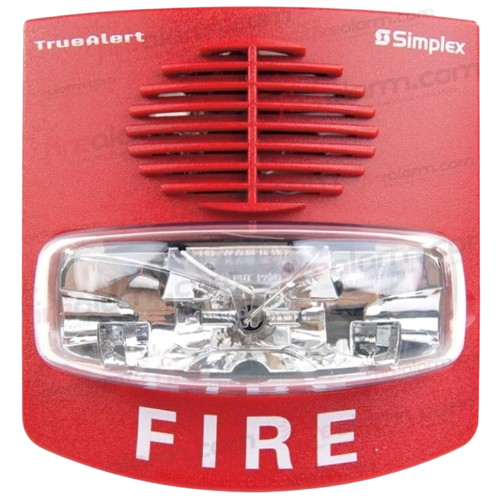

Simplex 4906-9127 Wall Mount TrueAlert Horn Strobe
QAR180.00
The Simplex 4906-9127 is a wall-mounted TrueAlert multi-candela audible/visible notification appliance featuring a 24 VDC electronic horn and high-output xenon strobe. Designed for SmartSync two-wire operation, it allows independent horn and strobe control on the same NAC circuit.
This model provides selectable strobe intensity settings of 15, 30, 75, or 110 candela, minimizing inventory requirements and simplifying field configuration. The horn supports steady, ANSI Temporal, or 60 BPM March Time patterns and operates as “on-until-silenced,” while the strobe operates as “on-until-reset” when used with compatible SmartSync control sources.
The housing is constructed of rugged, high-impact, flame-retardant thermoplastic and mounts to standard single-gang, double-gang, or 4-inch square electrical boxes.
Description
| Feature | Specification |
|---|---|
| Manufacturer & Model | Simplex 4906-9127 |
| Type | Audible/Visible (A/V) Notification Appliance |
| Addressing | Non-Addressable |
| Mounting | Wall mount (fits single-gang, double-gang, or 4″ square electrical boxes) |
| Housing Color | Red with white “FIRE” lettering |
| Operating Voltage | 24 VDC (Electronic Horn & Xenon Strobe) |
| Field-Selectable Candela | 15 cd, 30 cd, 75 cd, or 110 cd |
| Flash Rate | 1 Hz synchronized flash |
| Horn Output Patterns | Steady, ANSI Temporal, or 60 BPM March Time |
| Compliance | UL 1971, UL 464, FM Approved, ADA Compliant |
