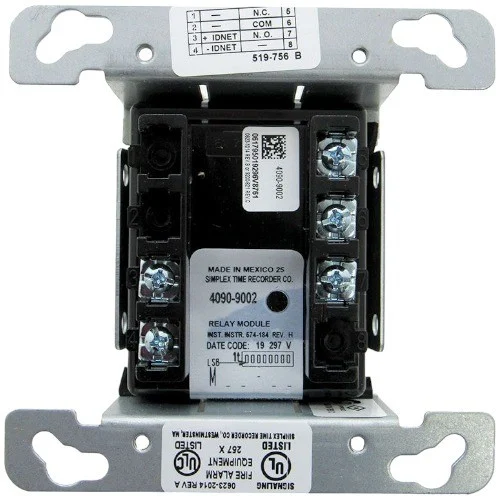

Simplex 4090-9002 IDNet Addressable Relay Module
QAR145.00
The Simplex 4090-9002 is a compact Relay Individual Addressable Module (Relay IAM) designed to provide precise, remote auxiliary control through a Simplex fire alarm control panel. It utilizes the IDNet communication loop to draw both operating power and data, significantly streamlining installation and reducing wiring complexity.
Description
Electrical & Contact Ratings
The module features one Form “C” (SPDT) dry contact set containing Normally Open (NO), Normally Closed (NC), and Common (COM) terminals.
| Circuit Type | Load Type | Rating |
|---|---|---|
| Power-Limited | Resistive / Transient-Suppressed | 2 A @ 24 VDC |
| Power-Limited | Inductive | 1 A @ 24 VDC |
| Non-Power-Limited | Transient-Suppressed | 0.5 A @ 120 VAC |
Operational Specifications
- Power Source: Supplied entirely by the IDNet communication loop. It requires no separate external 24 VDC power wiring.
- Current Draw: Minimal due to a low-power, magnetic-latching relay design that only consumes power when switching states.
- Addressing: Configurable from 1 to 250 via an onboard 8-position binary DIP switch.
- Communication Distance:
- Up to 2,500 ft (762 m) from the fire alarm control panel to the module.
- Up to 10,000 ft (3,048 m) total IDNet loop wiring distance, including all T-Taps.
- Wire Range: Screw terminal connections accepting 18 AWG to 14 AWG solid or stranded wire.
Mechanical & Environmental
- Dimensions: 4-1/8″ H × 4-1/8″ W × 1-3/8″ D (105 mm × 105 mm × 35 mm).
- Mounting: Mounts inside a standard 4-inch square electrical box with a minimum depth of 2-1/8 inches (54 mm).
- Operating Temperature: 32°F to 120°F (0°C to 49°C).
- Humidity Limits: Up to 93% RH at 100°F (38°C), non-condensing.
- Construction: Sealed, enclosed thermoplastic housing to prevent dust infiltration.
