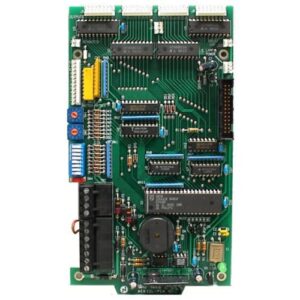

The LDM Series lamp driver modules, when combined with a custom graphic display, provide annunciation and control for Fire Lite’s intelligent fire alarm control panels. These modules use a serial communications interface, and may be located up to 6,000 feet from the panel. The Lamp Driver Module LDM-32F has 32 alarm lamp/LED driver outputs which sink current to system common (–) on activation. A single positive (+) voltage is required to supply total operating power for all lamps or LEDs when all drivers are activated. The LDM-32F provides a separate driver for system trouble and inputs for a local lamp test switch. A maximum of 16 external control switches may be wired to the LDM-32F. DIP switch SW3 is used to enable or disable the on board piezo, enable remote switch functions, select a flashing LED function for new alarms and troubles, and other functions. Switch SW4 is used to configure the module to annunciate 32 alarms or 16 troubles. A green ON LINE LED flashes to indicate ongoing communications with the host FACP. One LDM-32F supports up to 3 LDM-E32F modules. The LDM-32F is supplied with 4 standoffs and screws for mounting to a CHS 4L chassis or custom back box.

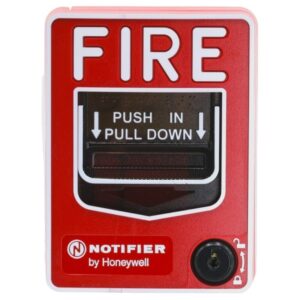

The Notifier NBG-12LX is a dual-action, addressable manual pull station designed for use with Notifier intelligent fire alarm control panels (except FireWarden series panels and the NSP-25 panel). The station requires two motions (push-in and pull-down) to activate, reducing accidental alarms.

As an addressable device, the NBG-12LX communicates directly with the control panel via the Signaling Line Circuit (SLC), allowing the exact device location to be displayed upon activation. The station features a built-in bi-color LED visible through the handle, flashing during normal operation and latching steady red in alarm.

The unit mounts semi-flush to standard electrical boxes or surface-mounts using compatible backboxes. It is constructed of durable red polycarbonate and includes a key-reset mechanism for secure restoration after activation.
