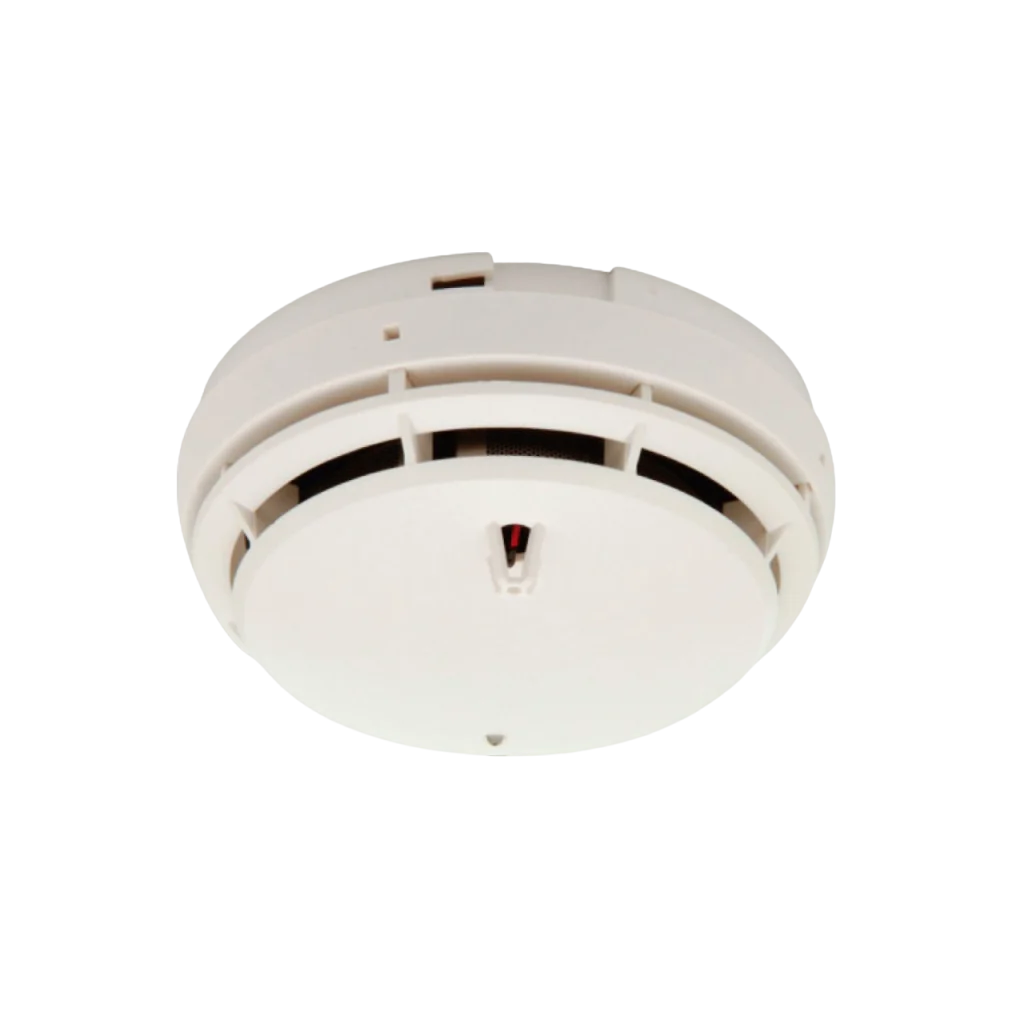

Simplex 4098-9764 Photo Sensor with Heat, Simplex

QAR125.00

The Simplex 4098-9764 is an addressable TrueAlarm multi-sensor detector that combines photoelectric smoke sensing and thermal heat sensing in a single housing. By continuously communicating analog data to a compatible Simplex fire alarm control unit (FACU), the system applies a “TrueSense” covariance algorithm to analyze both activities simultaneously. This dual-criteria evaluation allows the system to drastically reduce nuisance alarms while responding much faster to hot, flaming fires

Description

Technical Specifications

Feature / Specification Detail
Model Number 4098-9764
Sensor Type TrueAlarm Addressable Multi-Sensor (Photoelectric Smoke & Heat)
Smoke Detection Technology Pulsed infrared LED light source with silicon photodiode receiver
Thermal Detection Technology Fast-acting, accurate thermistor
Communications Protocol Addressable IDNet or MAPNET II (two-wire)
Operating Voltage 24 to 40 VDC (supplied via the SLC loop)
Standby Current 400 µA typical (from SLC)
Alarm Current 1 mA typical (from SLC; does not include base LED or relay current)
Dimensions (Sensor Head) 4-7/8″ Diameter x 2-3/8″ Height (124 mm x 60 mm)
Color & Material Frost White, impact-resistant polymer housing
