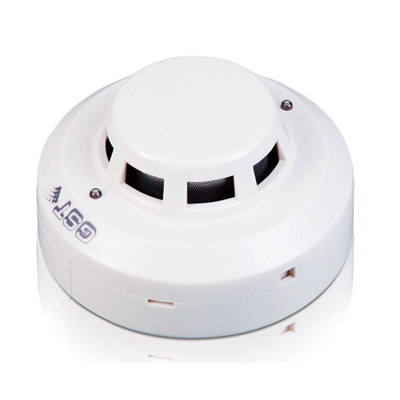

DI-9102E Intelligent Photoelectric Smoke Detector
The DI-9102E Intelligent Photoelectric Smoke Detector is a new-generation addressable fire detection device manufactured by GST (Gulf Security Technology). Designed to form a comprehensive fire alarm network when connected to an intelligent fire alarm control panel, it utilizes advanced light-scattering technology to rapidly recognize both black smoke and slow-burning, smoldering fires
Description
| Dimensions | 100 mm (Diameter) × 44.5 mm (Height without base) / 54.5 mm (With base) | |
| Weight | Approximately 110 grams | |
| Enclosure Material | High-grade, fire-retardant ABS plastic | |
| Housing Color | Traffic White (RAL 9016) | |
| Ingress Protection Rating | IP2X | |
| Operating Temperature | -10°C to +50°C | |
| Relative Humidity Limit | ≤ 95% RH, non-condensing | |
| Operating Voltage | Loop 24V DC (Range: 16V DC to 28V DC) | |
| Standby Current | ≤ 0.8 mA | |
| Alarm Current (Without Indicator) | ≤ 1.8 mA | |
| Alarm Current (With Indicator) | ≤ 3.8 mA | |
| Data & Memory Capacity | Internal microprocessor, stores up to 14 historical events | |
| Addressing Range | 1 to 242 (Electronically programmable via handheld programmer) | |
| Sensitivity Settings | 2 Programmable levels (Level 1 complies with EN54-7) | |
