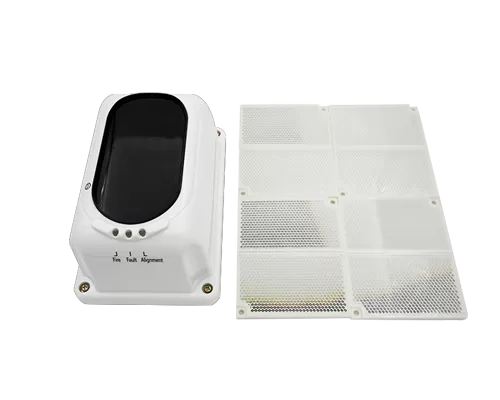

TX7130 Conventional Reflective Beam Detector

Original price was: QAR750.00.Current price is: QAR650.00.

EN 54-12:2015 Compliance
Hassle free alignment, built with digital guide display and laser beam pointer
Employ single-ended design through reflective mirror
Four ranges wide monitoring from 8-100 meters via encoder
Three users programing sensitivity adjustment
Built-in microprocessor
Self-diagnosis function can monitor for internal faults
Automatic compensation for factors weakening received signals, such as dust contamination, positional movement and ageing of the transmitter
Fire and Fault interfacing relays
Real User friendly alignment method

Category Conventional Fire Alarm System Brand: Tanda

Description

Approvals	LPCB / CE-CPR
Operating Voltage	20V to 28V DC
Current Parameters	Standby: 23mA, Commission: 56mA, Alarm: 33mA
Beam Sensor Sensitivity	Level 1: 2.6 dB High Sensitivity Level 2: 3.8 dB Medium Sensitivity Level 3: 5.8 dB Low Sensitivity
Beam Pathway Length	Span 1: 8 to 20 meters (Limited Path, 1× mirror reflector required) Span 2: 20 to 40 meters (Short Path, 1× mirror reflector required) Span 3: 40 to 70 meters (Normal Path, 4× mirror reflectors required) Span 4: 70 to 100 meters (Long Path, 4× mirror reflectors required)
Beam Path Angle	±0.4° Directional
Alignment Guide	Laser Beam Pointer
Digital Display Guide	Nixie Tube
LED Indicator Guide	Red: Fire; Yellow: Fault; Green: Alignment
Reset Time	Less than 2 Seconds (Power Cut)
Relay Capacity [Fire/Fault]	Normally Open & Close / 2.0A; 30VDC
Material / Colour	ABS / White Glossy finishing
Dimension (L×W×H)	190.87 × 126.87 × 91.96 mm
Weight	1.1 kg with base
Accessories	Mounting Bracket / TX7130-R 4× Mirror Reflector (TX7930 sold separately)
Operating Temperature	-10°C to +50°C
Protection Rating	IP30 [IP66 glue seal-For permanent fixing, not EN54-12 approved)
Humidity	0 to 95% RH, Non-condensing
