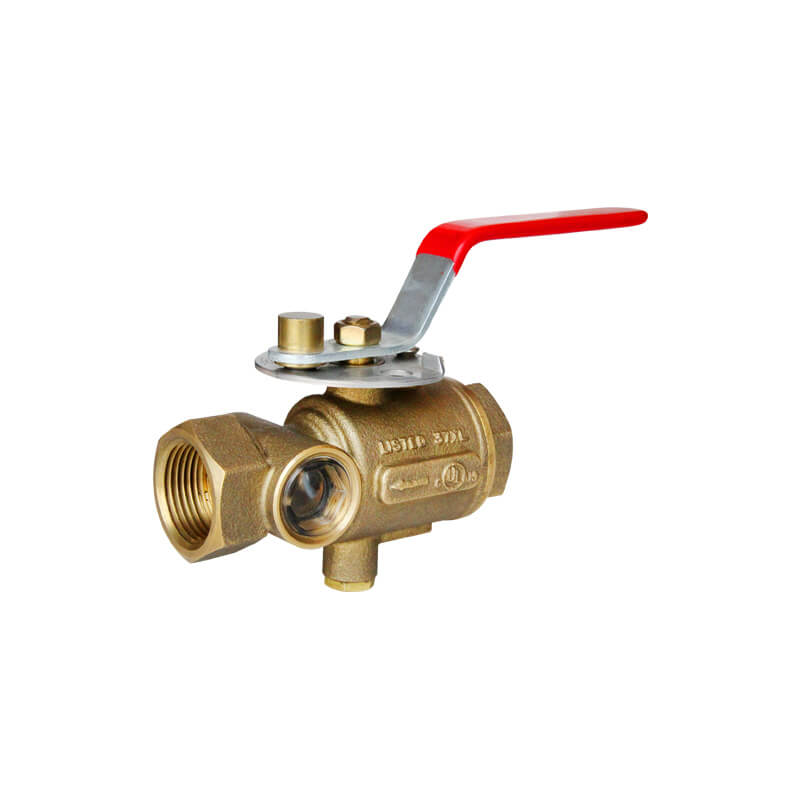

Q2968 UL FM Test & Drain Valve with Sight Glass

The Model Q2968 Test and Drain Valve is an industry-standard, multi-functional ball valve designed for water flow testing and system draining in fire network and sprinkler systems. Originally manufactured by Ningbo Huacheng Valve (and distributed/wholesaled globally by various safety supply brands like King Bell, SD Fire Sprinkler, and NASCO), it replaces multiple individual fittings to optimize space and meet NFPA 25 requirements.

Description

Key Specifications

  • Rated Pressure: 300 PSI (20.7 bar)
  • Certifications: UL Listed and FM Approved
  • Available Sizes: 1″, 1-1/4″, 1-1/2″, and 2″ (with Female NPT Threaded Connections)
  • Material Composition: Heavy-duty ASTM B283 C37700 Brass body with PTFE seals and Lexan sight glasses
  • Restricting Orifice: Nominal K-factor of 5.6 / 80 with a 1/2″ restricting test orifice
