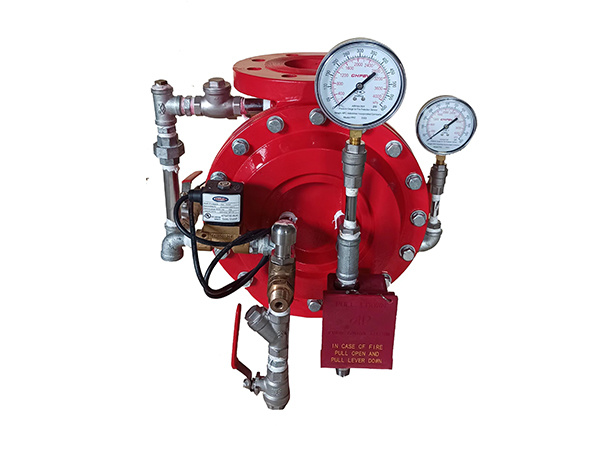

GY46X-300 Deluge Valve Flanged End 300 PSI
The GY46X-300 is a diaphragm-style Deluge Valve featuring flanged connection ends. Engineered by Ningjin APC Industries for high-hazard fire protection infrastructure, this quick-opening valve utilizes system water pressure to hold the internal diaphragm closed until it is actuated by a fire detection system (electrical, pneumatic, or manual).
Description
⚙️ Core Technical Specifications
| Parameter | Specification Details |
|---|---|
| Model Designation | GY46X-300 |
| Size Range | Available from 2″ to 12″ (DN50 to DN300) |
| Working Pressure | Rated up to 300 PSI (20.7 bar) maximum working pressure |
| Testing Pressure | Hydrostatic Shell Test: 600 PSI (41.4 bar) / Seat Test: 330 PSI (22.8 bar) |
| Working Temperature | 4°C to 70°C (39.2°F to 158°F) (Protect from freezing) |
| Flange End Connections | Flat-faced/raised flanges matching ASME/ANSI B16.1 Class 125, B16.42 Class 150, BS EN1092-2 PN16, or GB/T9113.1 |
🧱 Material Composition
-
- Valve Body & Bonnet: Heavy-duty Ductile Iron (ASTM A536 Grade 65-45-12)
- Diaphragm / Core Seal: High-strength, fabric-reinforced resilient EPDM rubber ensuring drip-tight closing and quick release.
- Internal Seat & Springs: Corrosion-resistant Stainless Steel (SS304) and high-grade Bronze.
- Trim Pipes & Fittings: Heavy-wall Galvanized Steel or Brass options.
- Protective Coating: Electrostatically applied Fusion-Bonded Epoxy (FBE) coating on both internal and external surfaces (Fire Red RAL 3000) for maximum corrosion protection.
📜 Design Standards & Approvals
-
- Safety Certifications: Dual certified UL Listed and FM Approved for high-hazard fire-protection configuration services.
- Design Standards: Strictly complies with performance metrics under UL 260 (Standard for Dry Pipe and Deluge Valves for Fire-Protection Service).
- Actuation Trim Options: Universally adaptable to host Wet Pilot (hydraulic), Dry Pilot (pneumatic), or Solenoid Valve (electric) release mechanisms.
