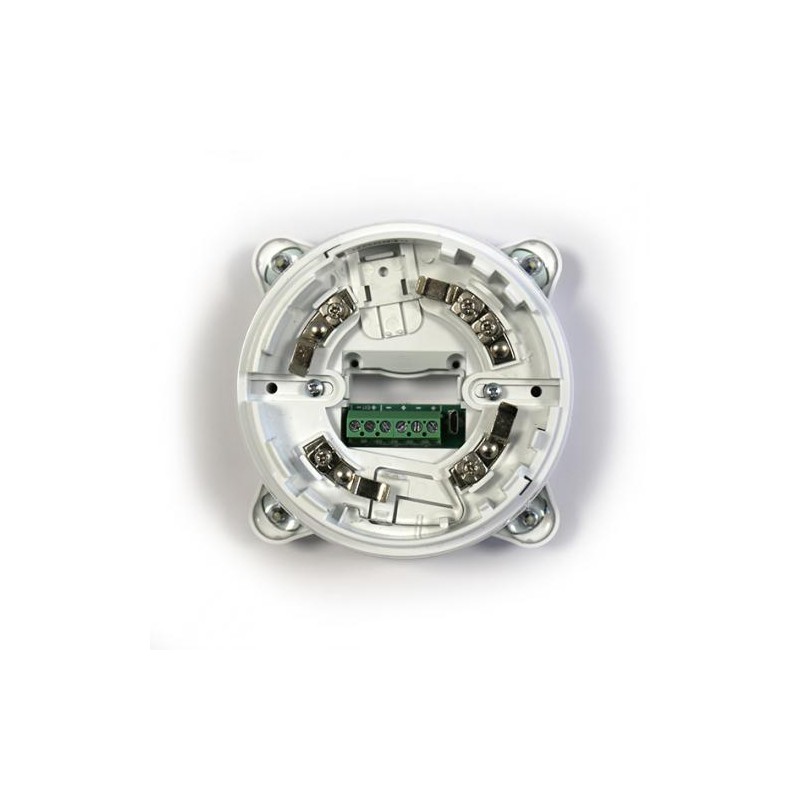

ISB1020 Non-Addressable Base with Visual/Audible Signaling

Non-addressable base with visual/audible signalling, low consumption, in black and white casing

Category Conventional Fire Alarm System Brand: INIM

Description

Tone	14 tones selectable via DIP switch
Sound output @ 1 m	Max. 98 dB
Visual range (EN54-23) High power	C 3-8 – 0-3, 3-8
Visual range (EN54-23) Low power	C 3-7 – 0-3-7
IP Protection Rating	IP21
Operating voltage	18–30 Vdc
Current draw	From 1.4 to 40 mA, depending on the selected tone
Optional separate power supply
Operating temperature	-10° … +55°C
Weight	220 g
Dimensions	112 x 112 x 53 mm
Colour	White
