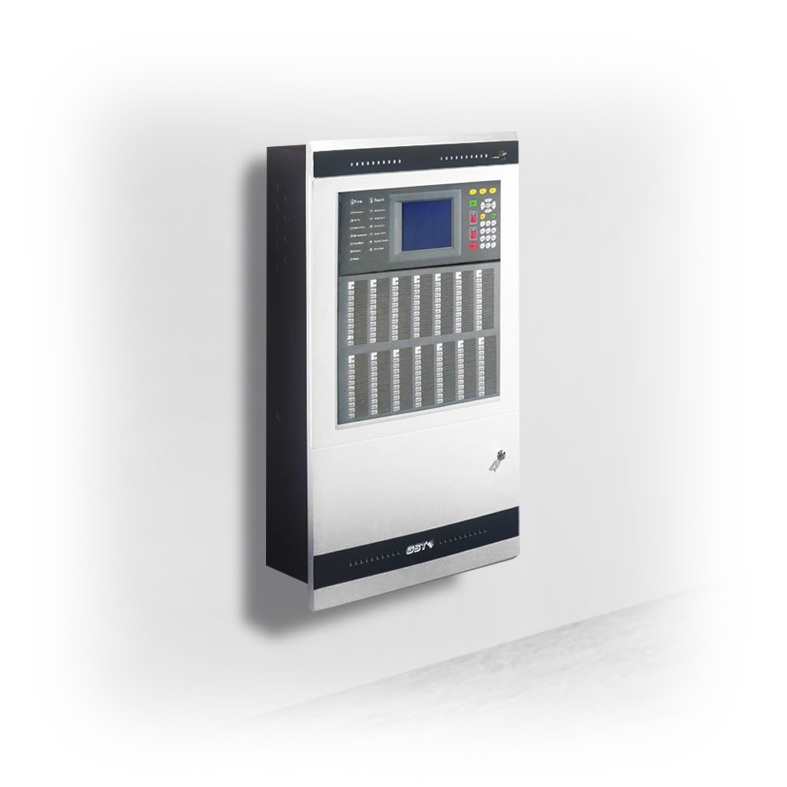

GST-IFP8 Intelligent Fire Alarm Control Panel along with 2 Loop Card
The GST-IFP8 Intelligent Fire Alarm Control Panel configured with a 2-loop card (such as the Carrier LCIFP8 Dual Loop Card) creates a highly scalable, addressable fire safety solution. While the standalone GST-IFP8 main chassis is designed to expand up to 8 or 10 loops, pairing it with an initial 2-loop card provides immediate coverage for up to 484 addressable devices (242 devices per loop). This makes it an ideal, future-proof configuration for medium-sized facilities looking to scale up over time
Description
| Primary Power Supply | 220V / 230VAC (Single Phase, +10% / -15%) |
| AC Current Input | 1.0 Amperes Maximum |
| Internal Operating Voltage | 24 VDC Nominal (Filtered and Regulated) |
| Standby Battery Capacity | 24VDC / Up to 38AH Sealed Lead Acid (SLA) |
| Battery Charger Current | 2.0 Amperes (Temperature Compensated) |
| Active Loops Installed | 2 Loops (Class A or Class B) |
| Maximum Scalable Loops | Up to 8 Class A Loops (or 10 Standalone Class B Loops via extra modular cards) |
| Addressable Point Capacity | 484 Addressable Devices (242 Intelligent Device Points per Loop) |
| Programmable Zone Limit | 999 Software Programmable Zones |
| Zone LED Indicators | 140 Individual Front-Panel Zone LED Indicators |
| Event Log Memory (Fire) | 999 Historical Fire Incidents (Non-volatile) |
| Event Log Memory (Fault/General) | 999 Historical General System Faults/Events |
| Monitored Sounder Circuit Output | 24VDC Output, Rated at 1.0 Ampere maximum |
| Monitored F.P.E. Output | Fire Protection Equipment Output, Rated at 500mA maximum |
| Monitored Fire Routing Output | Fire Routing Circuit Output, Rated at 200mA maximum |
| Network Interface Options | RS485 / CAN Bus / Fiber Optic Network Card Modules |
| Maximum Network Nodes | Up to 240 Interconnected Panels/Nodes |
| Enclosure Protection Rating | IP30 Enclosure Protection Rating |
| Chassis Material | Fabricated Mild Steel with Durable Powder Coating |
| Chassis Width | 484 mm |
| Chassis Height | 850 mm |
| Chassis Depth | 191 mm |
| Product Weight (Empty) | Approximately 16.5 kg (Without Standby Batteries) |
| Operating Temperature Range | 0°C to +40°C (For Indoor Installations Only) |
| Relative Humidity Limit | 95% Non-Condensing Maximum |
| Regulatory Compliance Standards | EN54-2 (Control and Indicating Equipment), EN54-4 (Power Supply Equipment) |
| Product Certification Status | CE Marked, LPCB (Loss Prevention Certification Board) Approved |
